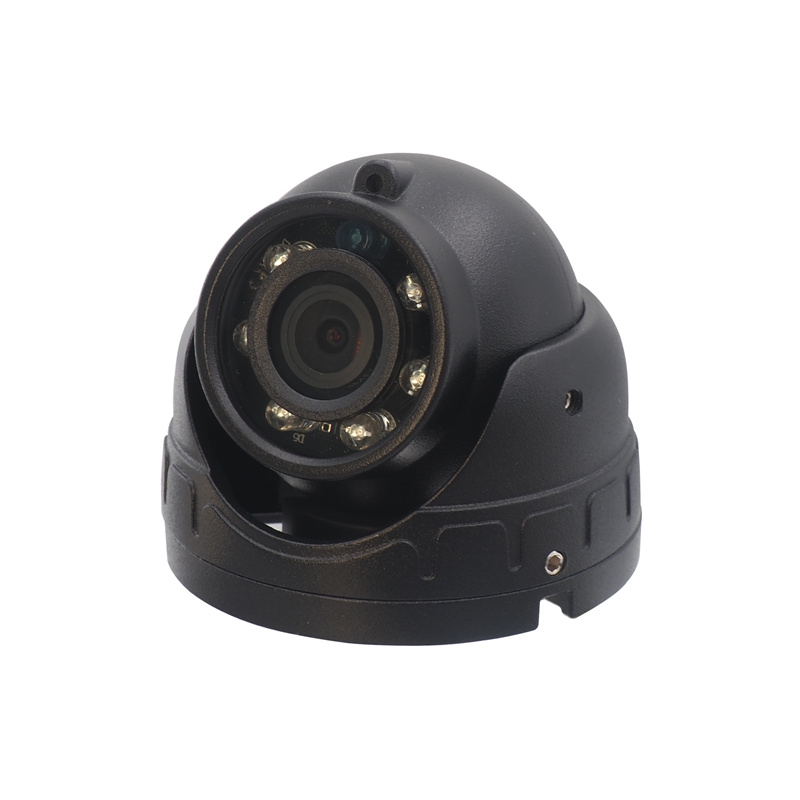

This compact conch-shaped in-car camera, featuring a classic design and IP66 waterproof level, offers 360-degree flexible installation and effortless angle adjustments, complemented by built-in audio capability. We offer comprehensive OEM and ODM services, enabling tailored chip solutions for diverse application scenarios to address complex operational requirements.
Product features:
1. 1080P high definition resolution
2. IP66 waterproof design
3. Support wide angle, up to 120°
4. Infrared distance 3-5 meters
5. Support built-in audio
6. Working temperature: -30ºC---70ºC
7. Working voltage: DC12V
Optional chip solutions:
Economical, WDR
Specifications
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | 120º |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 3m—5m |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP66 |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
