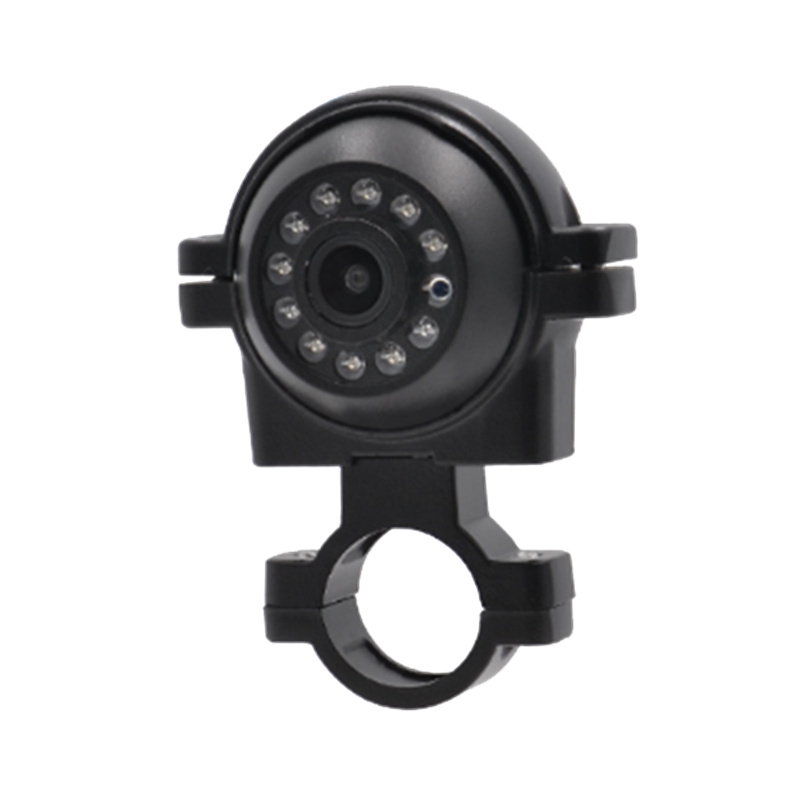

Side View Camera Designed for Bracket Installation

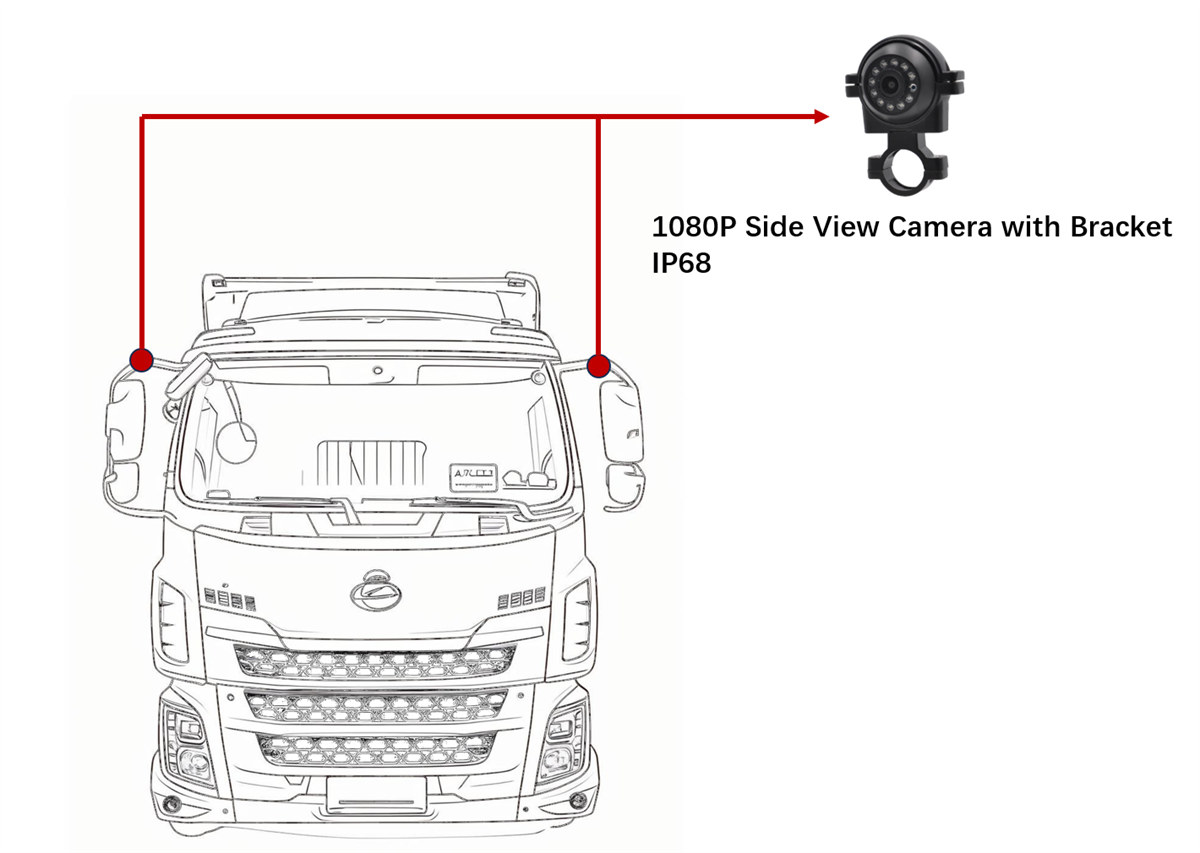

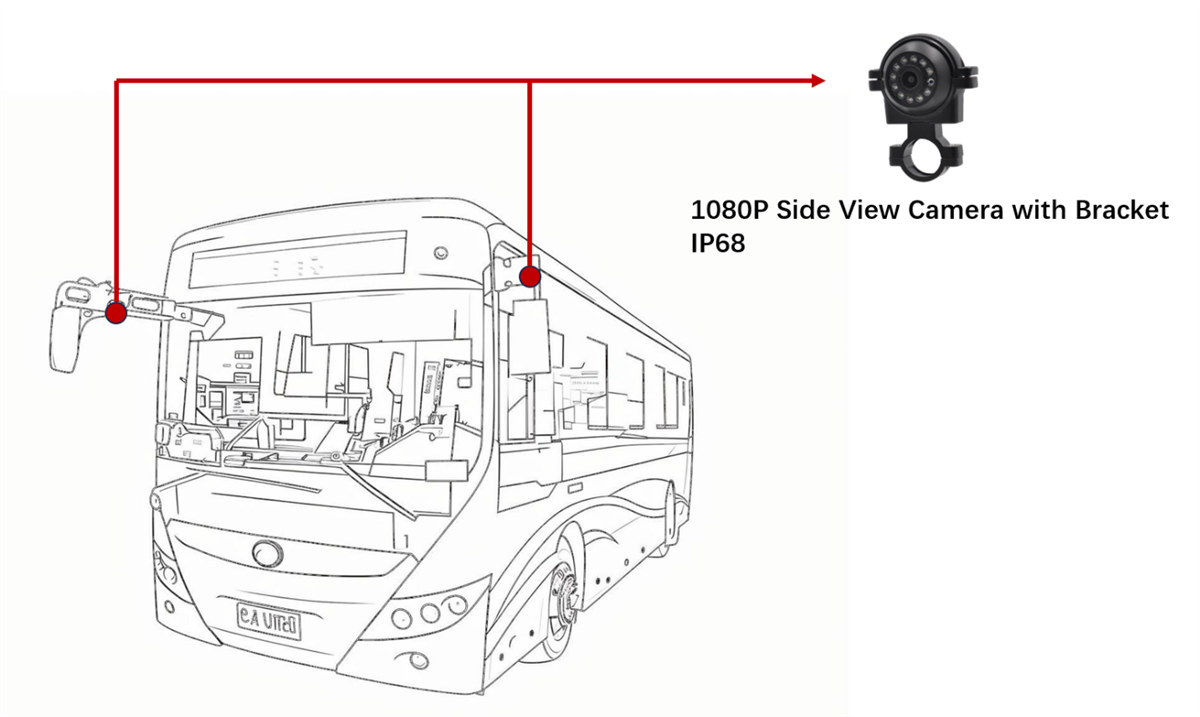

With a large adjustable camera angle, this camera has an IP68 waterproof rating and is widely used on commercial vehicles such as buses, trucks, and other types of fleet vehicles. OEM/ODM services are provided to meet various customer needs.
Equipped with network HD cameras, they deliver superior image quality, safer transmission, and easier maintenance.
Product features:
1. 1080P HD resolution.
2. Waterproof supports IP68
3. Supports mirroring image
4. Maximum angle supports 120 degrees.
5. Support ONVIF protocol.
6. Working temperature: -30ºC---70ºC.
7. Working voltage: DC12V
Specifications：
Image sensor | 1/2.9" 2MP progressive scan CMOS |
video codecs | H.264/H.265/Mjpeg(optional) |
encoding bitrate | 128Kbps-8Mbps |
maximum resolution | Main：1920*1080（25/30fps） |
network interface | 6-pin aviation connector |
camera angle | Max120° |
Image Mode | Normal/mirror |
GAMMA | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Mini illumination | 0lux |
nfrared night vision range | 5m-10m |
dynamic range | 85db（WDR ON） |
SNR | 52Db |
basic protocol | TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTP,RTSP, |
connection protocol | ONVIF/CGI |
Waterproof rating | IP68 |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
