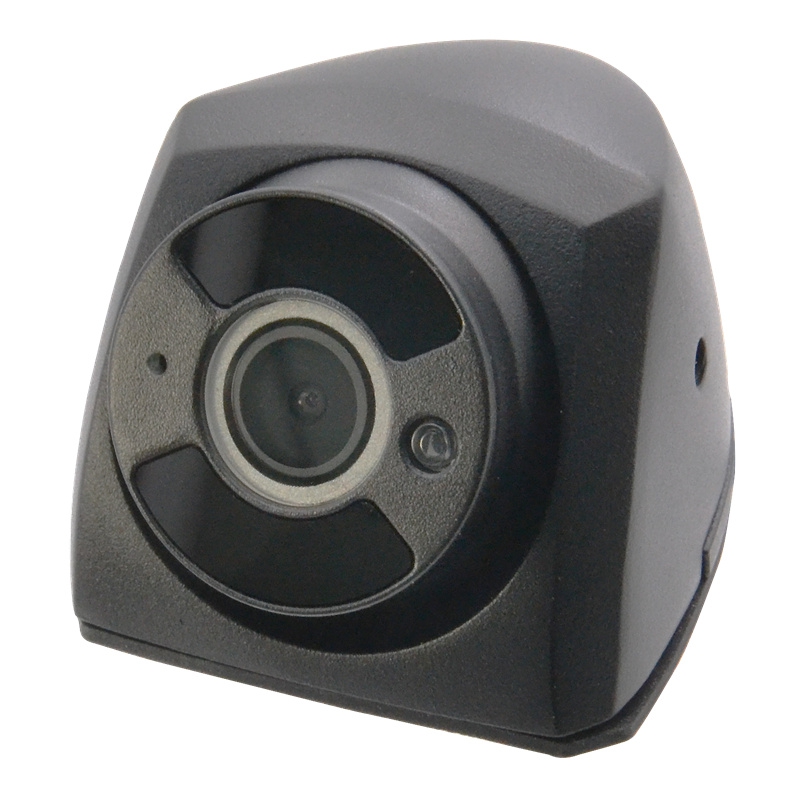

Classic in-car spiral-shaped camera with convenient angle adjustment. Supports audio. We provide OEM and ODM customization services and can select different chip solutions based on specific usage scenarios to meet complex on-site requirements.
Product features:
1. 1080P high definition resolution
2. Support wide angle, up to 120°
3. Infrared distance 5-10meters
4. Support built-in audio
5. Working temperature: -30ºC---70ºC
Specifications
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | 120º |
Image Mode | Normal |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 5m—10m |
Dynamic Range | 85db |
SNR | 52Db |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
