This is a durable reverse camera with an IP68 waterproof rating, making it suitable for various vehicle reversing needs in complex driving conditions. We offer extensive OEM/ODM services and a range of chip solutions to meet different requirements.
Product features:
1. 1080P high-definition image
2. With wide-angle vision, the highest angle can reach 120º.
3. Support mirror function.
4. Waterproof performance reaches IP68.
5. Sturdy design, excellent shock resistance.
6. Infrared distance: 5-10m
7. Working temperature: -30ºC---70ºC.
8. Working voltage: DC12V
Options chip solution:Economic, WDR, low illumination
Parameter

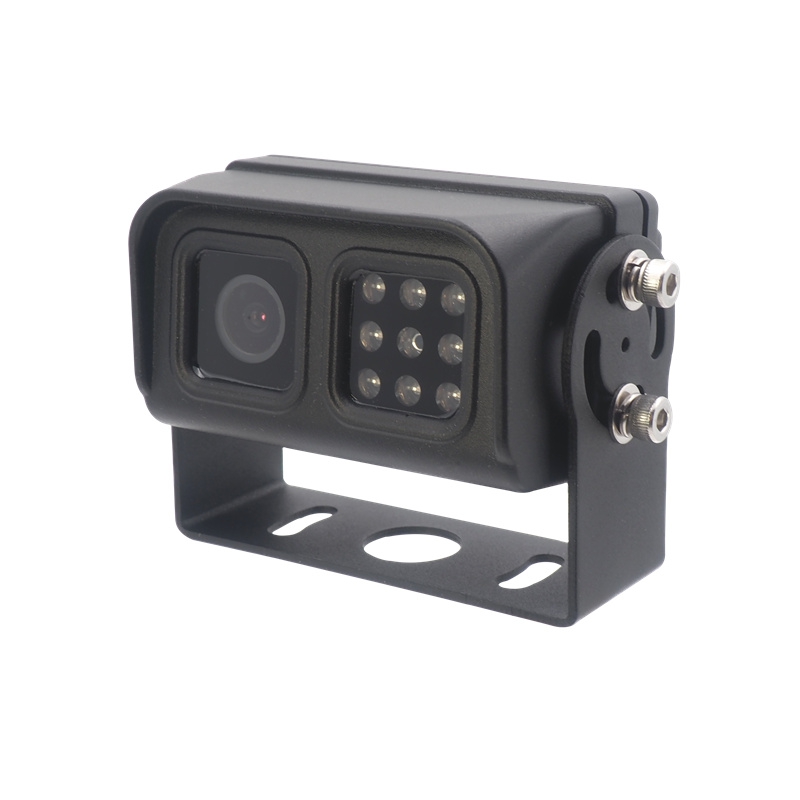

FHD322A-G3
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | MAX 120º |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 5m—10m |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP68 |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
 |  |
