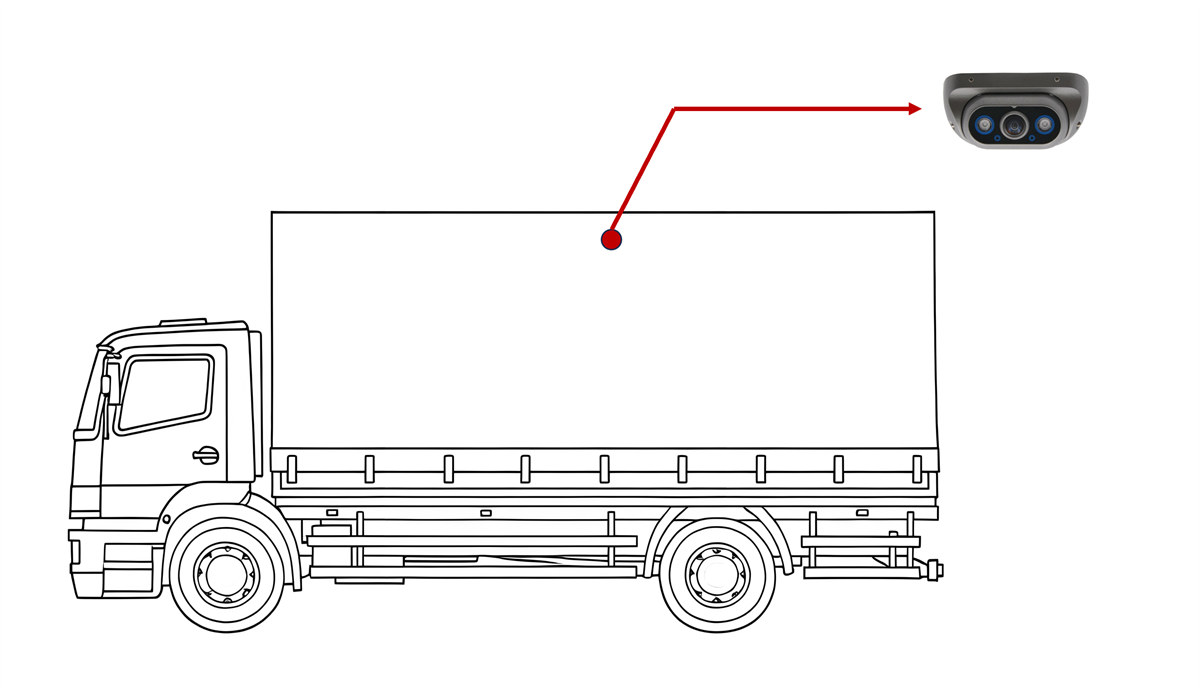

This camera is designed for installation on the side of vehicles, with an outstanding waterproof design rated IP69K. It also features a superior shockproof design and a sleek, attractive appearance. Supporting various installation methods, including both vertical and horizontal mounting, it is highly versatile and can be widely used across different types of vehicles. This makes it an excellent side-view camera. We also offer OEM/ODM services to provide the best possible solutions tailored to our customers' needs.
Product features:
1. 1080P high-definition camera
2. Suitable for outdoor installation.
3. Waterproof structure design, waterproof level reaches IP69K
4. Wide-angle design, up to 150 degrees
5. Infrared distance 5-10 meters.
6. Operating temperature: -30ºC---70ºC.
7. Operating voltage: 12V±10%
Specifications

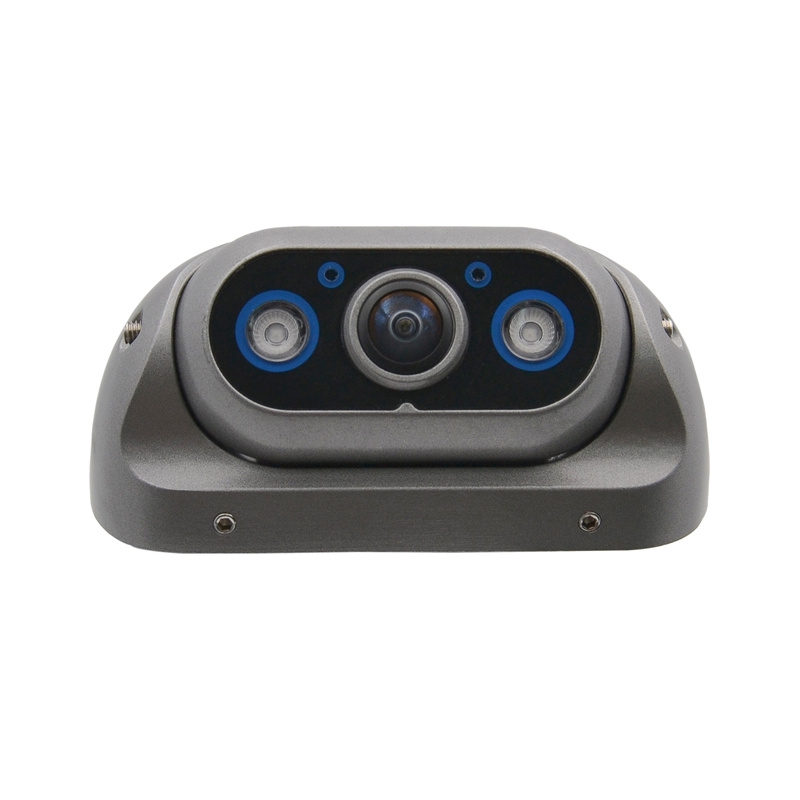

FHD321K-G3
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | Max 150° |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 5m—10m |
Dynamic Range | 85db |
SNR | 52Db |
Waterproof | IP69K |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
