An outstanding dual-camera ,design with OEM and ODM services, offering a range of options including wide-angle, wide dynamic range, and low-light performance. Inward-facing cameras can be equipped with 940nm infrared to ensure eye safety. Our optimized designs deliver enhanced stability and reliability for our customers.
Product features:

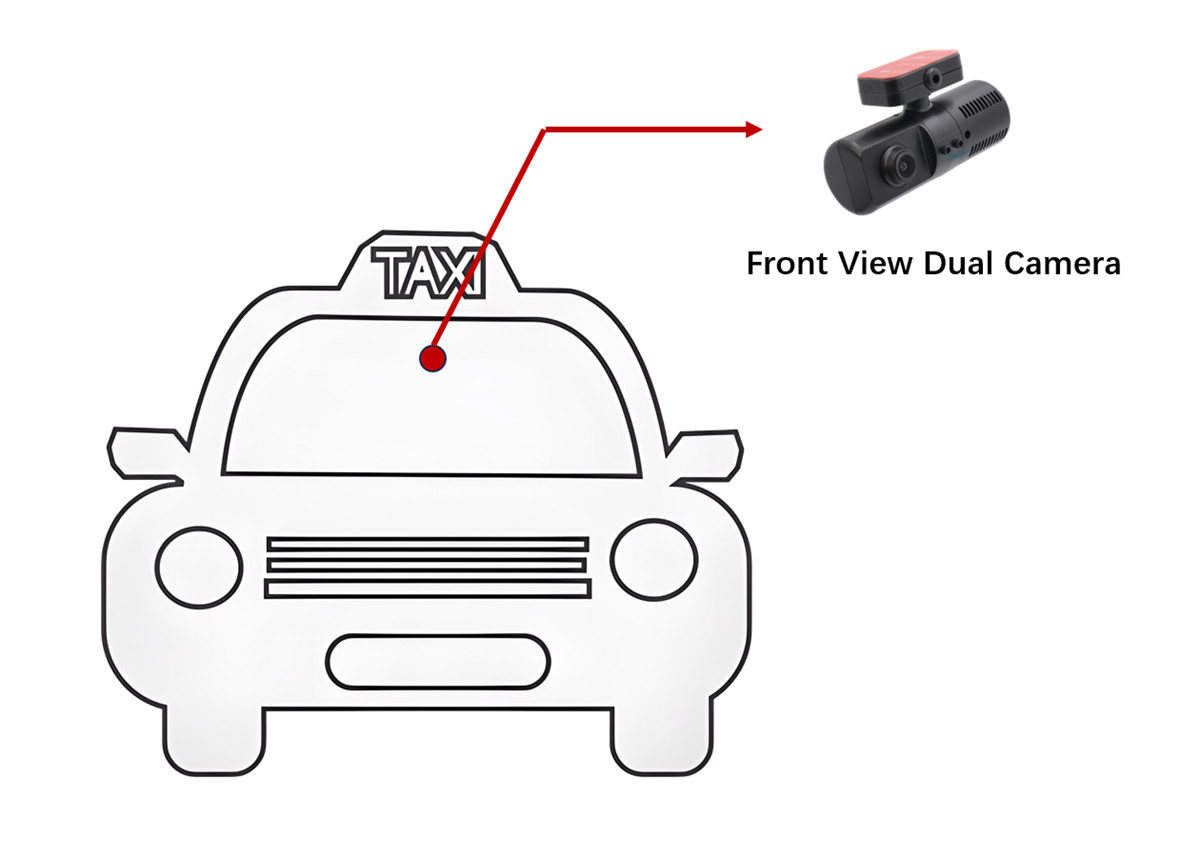

Front view camera
1. 1080P high resolution
2. Support WDR function
3. Support wider angles
4. Working Voltage: DC12V
5. Operating temperature: -30-70℃
Optional chip solutions
Economic type, WDR type, low illumination type, high quality type
1080P Internal View Vehcile Camera
1. 1080P high resolution
2. Support wide-angle video.
3. Support 940nm infrared light, infrared distance 3-5m
4. Support audio
5. Voltage: 12V voltage
6. Working temperature: -30ºC-70ºC
Specifications

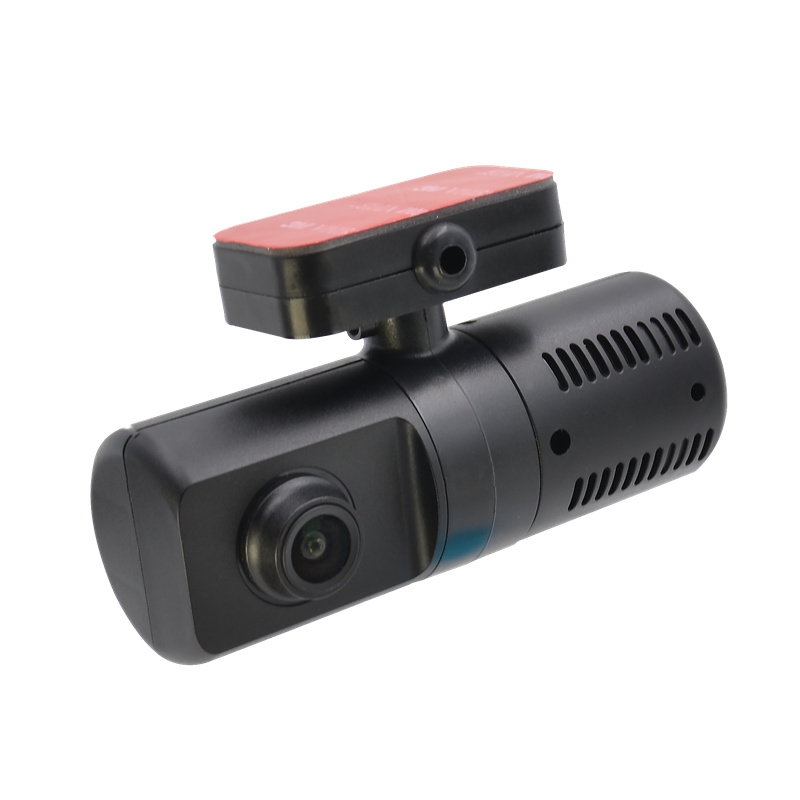

Front View Camera(FHD-G7)
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | |
Image Mode | Normal |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0.1lux |
Dynamic Range | 120db |
SNR | 52Db |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
1080P Internal View Vehicle Camera(G3)
Image sensor | 1/2.9‘ cmos |
Image resolution | 1920*1080 |
Output Format | AHD/TVI/CVI |
Scanning System | Progressive Scanning |
Vedio Output | 1.0Vp-p, 75Ohm |
Viewing Angle | 150° |
Image Mode | Normal/Mirror |
Audio | Yes |
Gamma Value | 0.45 |
BLC | Auto |
AGC | Auto |
White Balance | Auto |
Electronic Shutter | 1/30’---1/50000’sceonds |
Minimum Illumination | 0lux |
Night Vision Distance | 3m—5m |
Dynamic Range | 85db |
SNR | 52Db |
Operating temperature | -30ºC---70ºC， RH95%MAX |
Storage temperature | -40ºC——80ºC，RH95%MAX |
Power Supply | 12V±10% |
|  |
